Geotab GO10 GPS Tracker

The Geotab GO10 is a next-generation telematics device designed to provide businesses with detailed vehicle and fleet information. It combines GPS/GNSS positioning, cellular connectivity, vehicle data, Bluetooth, configurable inputs, and support for IOX add-ons.

The GO10 can collect location, diagnostic, movement, and other operational data from connected vehicles. Depending on how the device is installed and configured, it can also monitor supported vehicle functions and equipment.

Yes. The GO10 uses concurrent GNSS technology supporting GPS, GLONASS, Galileo, and BeiDou to determine vehicle location. Under open-sky conditions, it provides approximately 1.5-metre CEP-50 positioning accuracy.

The GO10 uses 4G LTE Cat 1 bis connectivity. Available cellular configurations support different LTE bands and operating regions depending on the specific device model and certification.

Yes. Its integrated Bluetooth Low Energy 5.4 capability allows the GO10 to detect compatible Geotab BLE beacons. This can extend tracking and visibility beyond the vehicle itself to smaller tools and equipment.

Yes. The GO10 supports compatible camera solutions such as GO Focus and GO Focus Plus, along with other supported IOX accessories.

The GO10 can support a combination of up to five compatible IOX add-ons. These can provide additional capabilities such as video, cold-chain monitoring, CAN connectivity, and other specialized functions.

The device has four software-configurable auxiliary inputs and one digital output. Depending on the application, these connections can support functions such as PTO monitoring, seatbelt-related inputs, and certain remote vehicle actions.

Yes. A GO10 can be configured for supported PTO monitoring applications through its auxiliary inputs, allowing businesses to collect information about the operation of specialized vehicle equipment.

Yes. The GO10 supports multiple vehicle communication interfaces and diagnostic protocols, including OBD-II, heavy-duty OBD, SAE J1939, J1939-FMS, and supported OEM diagnostic protocols.

The GO10 supports heavy-duty vehicle applications and interfaces, including SAE J1939 and J1939-FMS. However, it does not support PWM/JPW protocols, which may affect compatibility with certain legacy heavy-duty and off-road vehicles. Compatibility should be confirmed before installation.

Yes. The GO10 supports both 12 V and 24 V vehicle electrical systems, with an operating voltage range of 6 to 32 V.

The GO10 has an onboard energy reserve that supports Last Gasp functionality. When an unexpected power interruption occurs, the device can record information and attempt to transmit a high-priority notification.

Yes. The GO10 supports over-the-air firmware updates, allowing compatible updates to be delivered without physically replacing the telematics device.

The GO10 is designed to operate between -40°C and +85°C. It has also been engineered and tested for environmental conditions including vibration, humidity, temperature cycling, and operational shock.

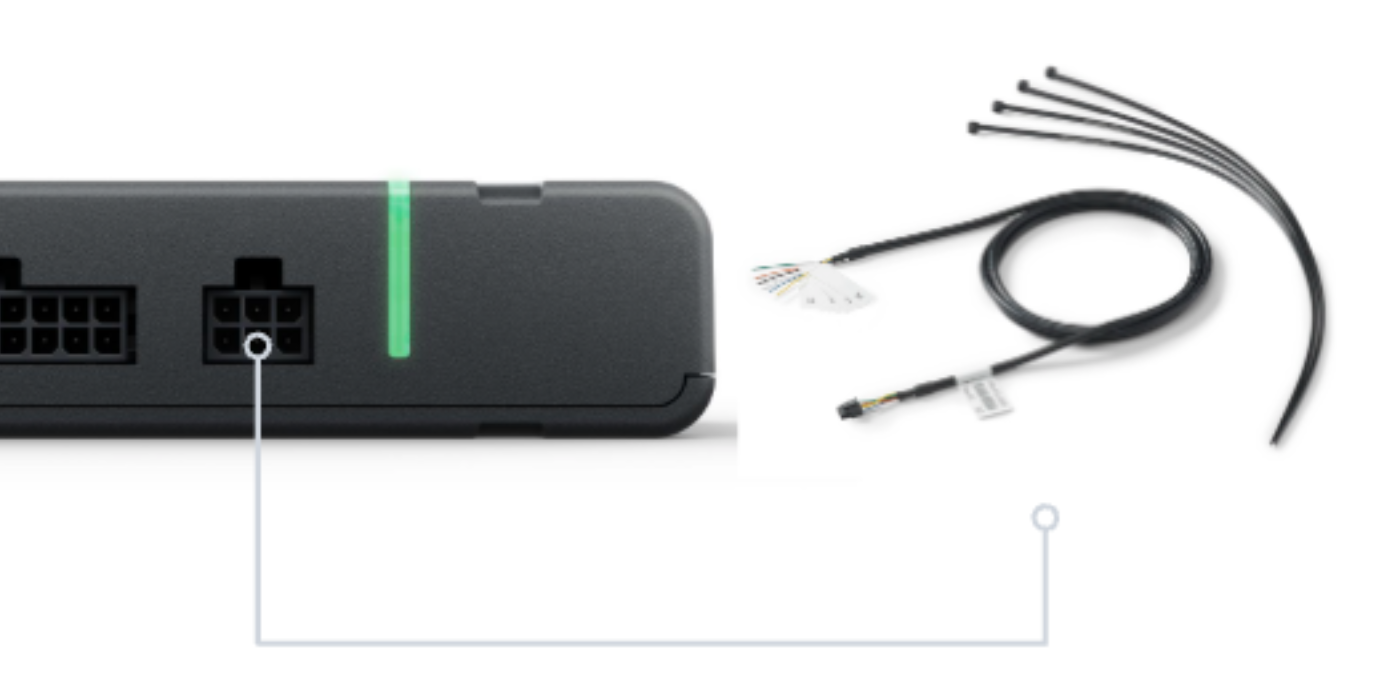

The GO10 is installed using an appropriate Geotab device harness and vehicle connection. Installation requirements can vary depending on the vehicle and application, and additional hardware may be needed for certain configurations.

No. Bluetooth Low Energy 5.4 is built into the GO10, so compatible BLE beacons can communicate directly with the device for supported small-asset tracking applications.

The GO10 includes a digital output that can support certain remote vehicle actions, including immobilization, when the required hardware, configuration, and application conditions are in place.

GO devices use security measures including authentication, encryption, and message integrity verification. Each device also has a unique identifier and non-static security key, while firmware updates are digitally signed.

The GO10 measures approximately 110 mm × 57 mm × 25 mm and weighs approximately 85 grams. Its housing is made from PC+ABS and includes integrated GPS and cellular antennas.
