Teltonika FMM80A OBD2 Tracker

The FMM80A is a compact, plug-and-play GPS tracker designed specifically for the North American market (Canada and the USA). It connects to a vehicle’s standard OBD2 diagnostic port and instantly begins transmitting real-time location data, vehicle diagnostics, and event alerts, no wiring, no tools, and no technician required. It runs on 4G LTE Cat M1 and NB-IoT networks with a 2G fallback for broad coverage.

The standard package includes the FMM80A tracker unit itself, along with top and bottom device cover parts.

The FMM80A (order code FMM80A-Q2IB0) holds FCC, IC (Industry Canada), PTCRB, AT&T, and RoHS certifications, making it fully compliant for use across Canada and the United States. These certifications also confirm compatibility with major North American carriers.

Yes, the FMM80A requires a micro-SIM card to connect to cellular networks. The SIM slot is accessible inside the device housing and only needs to be inserted once at initial setup. Because it holds the FCC, PTCRB, and AT&T certifications, it is compatible with carriers including AT&T, T-Mobile, Verizon, and Rogers in Canada.

Installation couldn’t be simpler. Locate the OBD2 port in your vehicle, it’s typically found under the dashboard on the driver’s side, and plug the FMM80A directly into it. The device draws power from the vehicle immediately and begins operating. There is no wiring, no drilling, and no specialized knowledge required. Most users are up and running within minutes of receiving the device.

In the vast majority of passenger cars and light commercial vehicles manufactured after 1996 (and most heavy-duty vehicles after 2001), the OBD2 port is located beneath the dashboard on the driver’s side, often near the steering column. If you’re having trouble locating it, your vehicle’s owner manual will confirm the exact position. An optional OBD-II connection extension cable or harness is also available if the port’s location makes direct connection awkward.

Yes. Because the FMM80A is entirely plug-based with no permanent wiring, it can be unplugged from one vehicle and moved to another in seconds. This makes it a practical option for businesses with rotating staff or shared vehicle pools, as well as for situations where temporary tracking is needed on a specific vehicle.

The OBD2 port is a read-only diagnostic interface — the FMM80A draws data from it and uses it for power, but does not alter or write to your vehicle’s systems.

The FMM80A uses 4G LTE Cat M1 as its primary connection, with NB-IoT support and a 2G fallback for areas where 4G coverage is limited. LTE Cat M1 is specifically optimized for IoT devices, it offers lower power consumption and better building/underground penetration than standard LTE, making it well-suited for fleet tracking applications across Canada’s diverse geography. More detail is available on Teltonika’s product announcement.

The combination of LTE Cat M1, NB-IoT, and 2G fallback means the FMM80A is built to maintain connectivity in challenging environments. While no cellular device can guarantee coverage everywhere in Canada, this multi-network approach gives you the best possible chance of staying connected, even in areas where 4G coverage is spotty. For operations in extremely remote regions, it’s worth discussing coverage maps with GPS Tracking Canada.

Yes, the FMM80A includes a built-in 115 mAh lithium battery. This provides a short-term backup in the event the vehicle’s power supply is interrupted, for example, if someone unplugs the device or the vehicle’s battery is disconnected. It also enables towing detection alerts, since the device can remain active and transmit even after being removed from the OBD port.

The FMM80A collects real-time GPS location data, speed, heading, and mileage. It also supports event-based monitoring including geofencing (entry and exit alerts for defined zones), making it best suited for straightforward tracking applications rather than deep vehicle diagnostics.

Yes. Geofencing is one of the FMM80A’s core capabilities. You can define geographic boundaries, a job site, a city boundary, a customer’s property, and receive automatic alerts whenever a tracked vehicle enters or exits those zones. This is managed through your fleet management platform (such as Wialon or MyGeotab).

The FMM80A integrates with a range of leading fleet management platforms. GPS Tracking Canada supports integration with Wialon, Geotab, and other platforms, providing real-time GPS tracking, device monitoring, and operational reporting from a single interface. The device uses the standard Teltonika protocol, which is supported by the majority of professional telematics platforms globally.

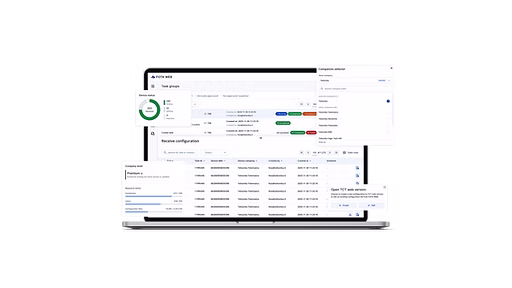

Firmware and configuration updates are delivered entirely over the air through Teltonika’s FOTA Web platform, eliminating the need to physically access devices in the field.

Yes. Beyond firmware updates, the FMM80A supports full remote configuration, including adjusting tracking intervals, event thresholds, geofence parameters, and connectivity settings, through the FOTA Web platform. This is particularly valuable for large fleets where visiting each vehicle individually would be impractical.

Absolutely. The plug-and-play nature of the FMM80A makes it just as practical for a business tracking two or three vehicles as it is for a large fleet. There’s no professional installation cost, no complex infrastructure to set up, and the device can be transferred between vehicles freely. GPS Tracking Canada offers customized pricing tailored to fleet size, so you only pay for what you need.. Request a quote by contacting GPS Tracking Canada here.

The FMM80A’s plug-and-play design makes it faster and cheaper to deploy than a hardwired tracker, and it’s fully transferable between vehicles. The trade-off is that it can be unplugged (though towing detection provides a tamper alert), and it does not read deep CAN bus vehicle data. For businesses that need basic-to-intermediate fleet visibility without the cost or downtime of professional installation, the FMM80A is an excellent fit. Businesses requiring deep engine diagnostics or permanent, tamper-resistant installation may want to explore hardwired options like the Geotab GO9. Contact GPS Tracking Canada to discuss which solution best matches your operational needs.
